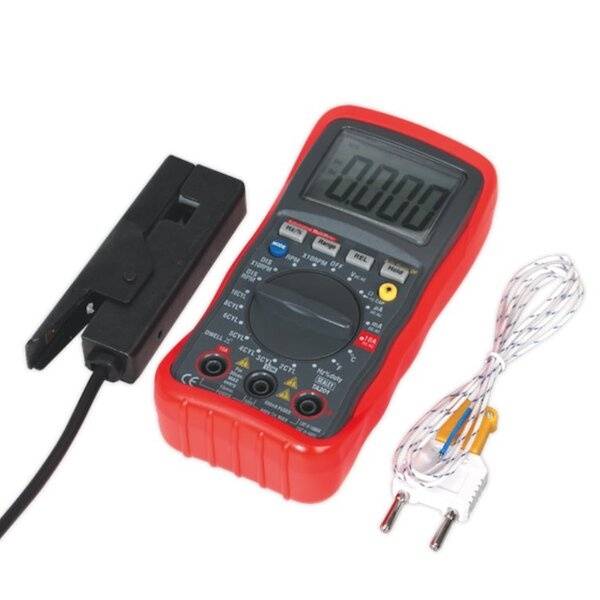

SEALEY Digital Automotive Analyser 13 Function with IC

Compact size meter with 4-digit 22mm, high-contrast LCD display and back light. Features auto-ranging, data-hold and auto-power-off functions. Includes inductive coupler for fast reading of engine rpm. Supplied with probe, crocodile clip and thermocouple leads for easy hook-up. Nett Weight:330g Tach (rpm): 4-Stroke; 600-4000 (x1)rpm, 600-12000 (x10)rpm, 2-Stroke; 300-4000 (x1)rpm, 300-6000 (x10)rpm Dwell:2Cyl 0-180°, 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°, 10Cyl 0-36° AC Voltage:400mV, 4V, 40V, 400V, 600V (Auto-Ranging, except 400mV) DC Voltage:400mV, 4V, 40V, 400V, 600V (Auto-Ranging) AC Current:400µA, 4000µA, 40mA, 400mA, 4A, 10A (Auto-Ranging for µA & mA) DC Current:400µA, 4000µA, 40mA, 400mA, 4A, 10A (Auto-Ranging for µA & mA) Capacitance:40nF, 400nF, 4µF, 40µF, 100µF (Auto-Ranging) Frequency:4V Range; 5Hz-10kHz, 40 & 400V Ranges; 5Hz-200kHz, 600V Range; 50Hz-1kHz, 400mA Range; 5Hz-5kHz, 10A Range; 5Hz-1kHz Duty Cycle:0.1-99.9% Pulse Width:No Resistance:400?, 4k?, 40k?, 400k?, 4M?, 40M? (Auto-Ranging) Continuity:<150? Temperature:-20 to +760°C/-4 to +1400°F IR Temperature:No Diode Check:Yes (Typical Test Current 0.3mA) Transistor Test:No Back Light:Yes Bar Graph Display:No Display Hold:Yes Auto-Ranging:Yes Inductive Coupler:Yes PC Interface:No Digits Height:22mm Auto Power Off:Yes Low Battery Indicator:Yes Batteries (supplied):9V (PP3) Hi-Impact Case:Yes Size (L x W x D):146 x 66.2 x 41.5mm Weight:330g

• Váha (gr):767
